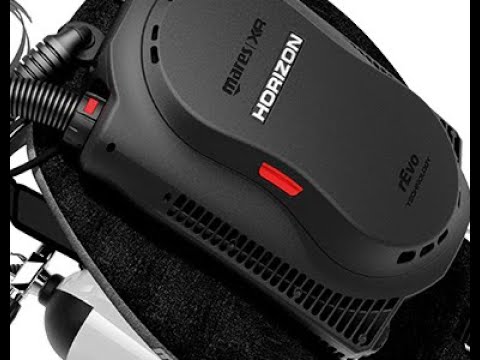

Mares Horizon

THE DECADES OF EXPERTISE BEHIND MARES AND REVO REBREATHERS HAVE COMBINED TO CREATE A UNIQUE SEMI-CLOSED UNIT LIKE NO OTHER.

For divers seeking a revolutionary SCR approach in a system that is easy to use, natural to dive, designed with all levels of diver in mind and developed to provide the utmost security...

KEY CHARACTERISTICS

The Horizon offers incredibly extended dive time compared to open circuit dives, giving the diver ample time to take in the wonderful underwater environment.

EXTENDED DIVE TIME

Dive times are an average of 3-8 times longer.

Standard nitrox gas cylinders that are available at the dive destination can be used.

Additional cylinder rigging optional.

SIMPLE LOGISTICS

The lightweight system is the ideal travel companion and does not require dedicated cylinders or weights.

The unit’s simple logistics allow the diver to use standard nitrox cylinders that are easily obtained from most dive destinations.

LIGHTWEIGHT

Complete unit weighs only 12kg for easy transportation.

Comes with 1 bottom gas regulator set weighing 1.4kg.

Optional decompression gas regulator weighing 1.4kg is also available.

Combined, the Horizon unit and regulators should fit in a single suitcase, weighing about 17kg in total – the standard checked baggage allowance for most airlines.

BUILD ON A FOUNDATION OF OPEN-CIRCUIT NITROX DIVING KNOWLEDGE

The Horizon SCR training builds on a foundation of open-circuit and nitrox diving knowledge, and the Horizon SCR controller intuitively maintains an ideal nitrox mix, depending on diver preferences.

Fewer bubbles allow wildlife enthusiasts to experience close encounters like never before.

AS EASY AS NITROX DIVING

The gas mix can be changed during the dive (using the controller) to extend dive time or decrease decompression time.

The controller will warn the diver if an inappropriate gas mix exists.

IMPROVED TRIM

The Horizon SCR provides warm and moist breathing gas, and an ergonomic design that intuitively improves the diver’s trim position and comfort.

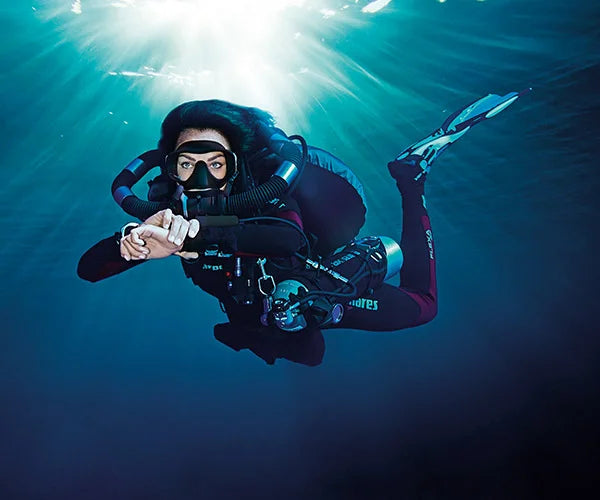

CREATES A NATURAL DIVING POSITION

The shape of the Horizon unit provides the ideal, horizontal trim.

The combination of warm air and improved dive position makes breathing natural and effortless.

The specially contoured, ergonomic unit includes a soft back plate, lumbar support, a buttplate and padded harness straps.

MAXIMISED SAFETY

The Horizon SCR was designed to maximize safety and ensure exceptional performance using multiple back-up safety systems and three sets of redudant electronics and power supplies.

FAIL-SAFE GAS OPERATION

During a total system failure, the unit supplies an opencircuit nitrox breathing gas mix.

A sophisticated monitoring system informs the diver of how much time remains before they must replace the scrubber material.

Regulator set(s) provide alternate gas sources that can be shared in an emergency situation.

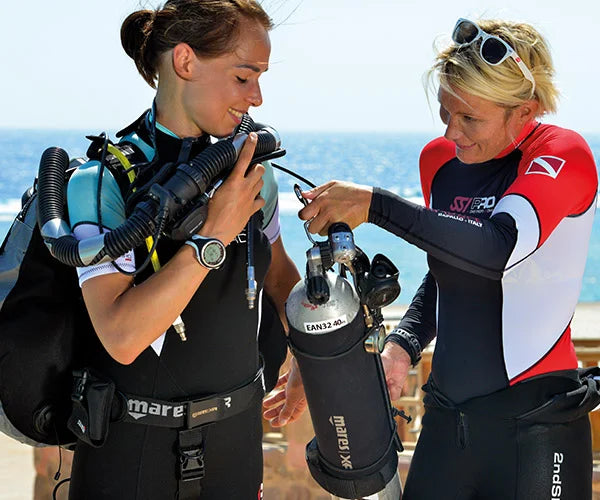

SIMPLE SET UP

One of the key attractions of the Horizon SCR is its incredible ease of use. It is simple to set up, requires no tools, has easy access to the scrubber canisters for filling and has a non-interchangeable, color-coded, quick release corrugated breathing hose.

EASY TO ASSEMBLE AND PREPARE

No tools required.

The harness can be fully adjusted according to need.

Nitrox cylinders can be obtained at the dive center on reaching your destination.

No pre-packed scrubber cartridges required – scrubber canisters can be re-filled by the diver.

No dedicated weights are required.

A WEALTH OF POSSIBILITIES

For the more advanced diver, the Horizon offers a range of advantages.

As well as a longer dive duration, the diver has dual gas possibilities – with the option of attaching a second cylinder with a higher O2 concentration for accelerated decompression.

READY FOR ADVANCED DIVERS

Uses the ZH-L16C Bühlmann algorithm with gradient factors.

Programmable bottom gas and decompression gas.

Within operational limits (up to 40m) the unit provides decompression obligations like that of a closed-circuit rebreather.

INTELLIGENT INTEGRATED CONTROLLER

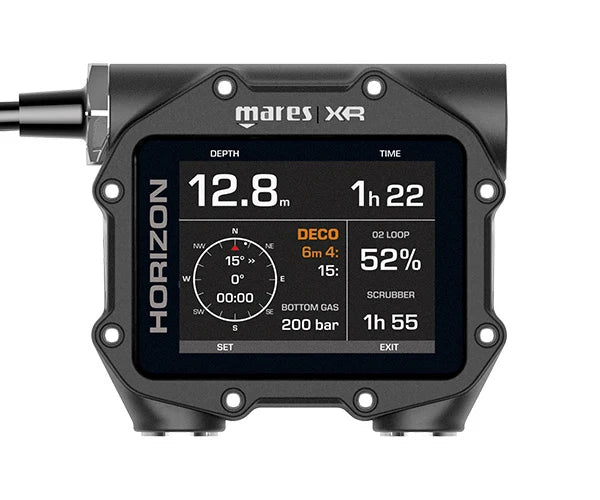

An integrated controller completes the Horizon, with a 2.8”, easy-to-read color display and optional wireless gas integration.

INTUITIVE INTERFACE

This intelligent computer is effortlessly operated via two large piezo elements, especially when wearing gloves, and includes a scrubber monitoring system to keep the diver informed of their scrubber status at all times, and an audible warning alarm.

MARES HORIZON

A REVOLUTIONARY APPROACH

What is in the box?

Standard Version

• 1x Mares Horizon SCR with wing and harness
• 1x Mares 15x First Stage
• 1x Mares Loop Second Stage
• 1x 100cm Regulator Hose
• 1x 50cm hose with QGC (Quick Gas Connector)
• 1x 30cm hose with QGC (Quick Gas Connector)
• 1x Download Clip (USB)

Deco Version

• 1x Mares Horizon SCR with wing and harness
• 2x Mares 15x First Stage
• 2x Mares Loop Second Stage>
• 2x 100cm Regulator Hose
• 2x 50cm hose with QGC (Quick Gas Connector)
• 2x 30cm hose with QGC (Quick Gas Connector)
• 1x Download Clip (USB)

Features

• Two (2) scrubber canisters, each containing 1 kg of CO2 absorbent that can be refilled by the user
• Two (2) integrated weight pockets, each containing a maximum of 2.5 kg of weight
• Fully adjustable harness system, from XS to XXL
• Safety gag strap on the mouthpiece
• 2 oxygen sensors
• Constant oxygen fraction supplied to the diver, adjustable during diving
• Reverts automatically to full nitrox breathing in case of failure
• Remaining scrubber time calculated by the dive computer
• No tools are required for preparation, use, or cleaning

Limits of Use

• Maximum recommended depth using one stage cylinder as gas supply, no decompression: 30 m
• Maximum allowed depth using two-stage cylinders as gas supply: 40 m
• ppO2 during use: minimum 0.22 bar, maximum 1.60 bar
• Water temperature: minimum 4°C, maximum 34°C
• Allowed nitrox mix: minimum 30%, maximum 99%
• Approved scrubber material: Sofnolime 797
• Scrubber material endurance depending on temperature and metabolic oxygen consumption: calculated by the dive computer (i.e. at 15°C or higher, with medium/high oxygen consumption, duration is > 3 h)

Electronics

• Three sets of redundant electronics, each with an individual battery system
• All battery systems can be charged from one single point
• 2.8” full color, high contrast dive computer screen
• User adaptable gradient factor decompression algorithm
• HUD with clear GOOD / FAIL indication
• Approved to 40m

Please note - As per the manufacturer's guidelines this product cannot be shipped without proof of unit-specific training. We will happily ship to your instructor or ship a disabled unit to you and the parts to make it work to your instructor. We can provide all training required at additional cost.
