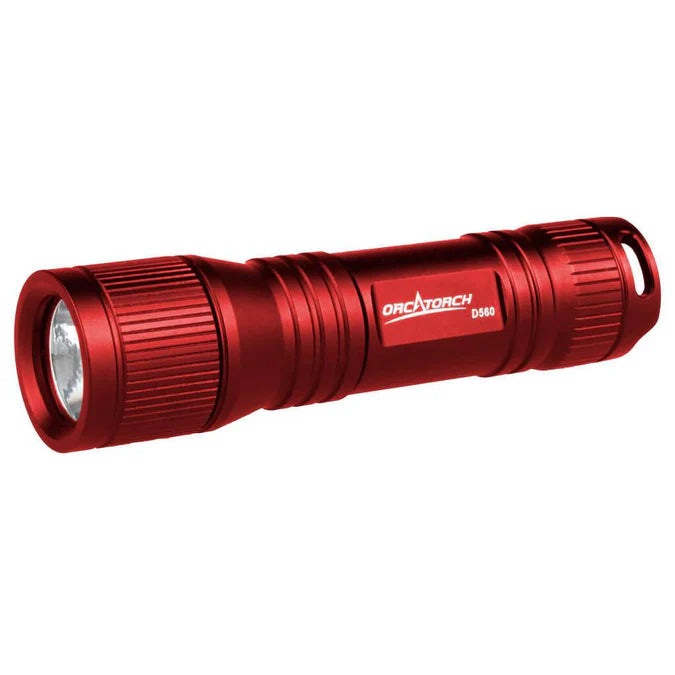

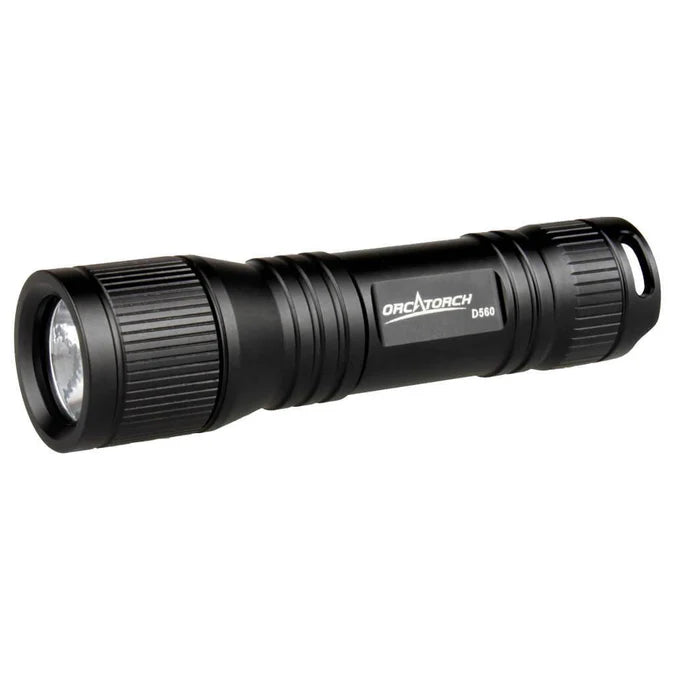

OrcaTorch D560 Dive Light

The Orca D560 is a lightweight and compact anodised aluminium dive torch that is just 92mm long with a maximum diameter of 24mm at the head, making it a very handy torch that can be easily stowed in a BCD pocket.

The D560 has a maximum output of 630 lumens from a CREE XM-L2 LED when powered by a rechargeable 14500 lithium-ion battery but it can also be fitted with a single AA battery to output 180 lumen. The torch produces a wide 60° halo with a 15° hot spot in the middle.

The anodised aircraft-grade aluminium housing is light and more thermally efficient than polymer, allowing it to dissipate heat better and produce a higher brightness level. The housing gives a depth rating of approximately 150m and features a double O-ring seal on the head/battery compartment connection and a lanyard attachment point on the end. The torch is activated by rotating the head and the reverse to switch off.

We recommend securely tightening the light head to activate the light prior to submersion. Please avoid loosening the light head until you have exited the water to prevent any potential leakage while underwater.

FEATURES:

• Cree XM-L2(U2) LED, 630 lumens output
• Uses a single AA battery or 14500 Li-ion battery
• Mechanically head rotary switch offers high-reliability underwater
• Water pressure resistant construction, depth rated to 150m
• High efficiency constant current circuit, constant brightness
• Reverse polarity protection, to protect from improper battery installation
• Over-discharge protection function
• Aircraft-grade high strength aluminium material
• The latest diamond grade hard-anodised seawater-corrosion-resistance finish
• Alloy aluminium reflector with professional optical analysis
• Two sides coated toughened glass
• Impact Resistance: 1m
• Working Voltage: 0.8-4.2V
• Dimension : 92 x 24mm
• Net Weight: 47.5g, excluding battery
